Acewell 4553 Digital Speedo Tacho & Gearbox Speed Sensor BMW R2V Twin Cylinder

Kenmore 17" Microwave
AU$414.00
In Stock
SKU: ACE-4553ABS11
In Stock Only 5 Left!


Calculate Shipping

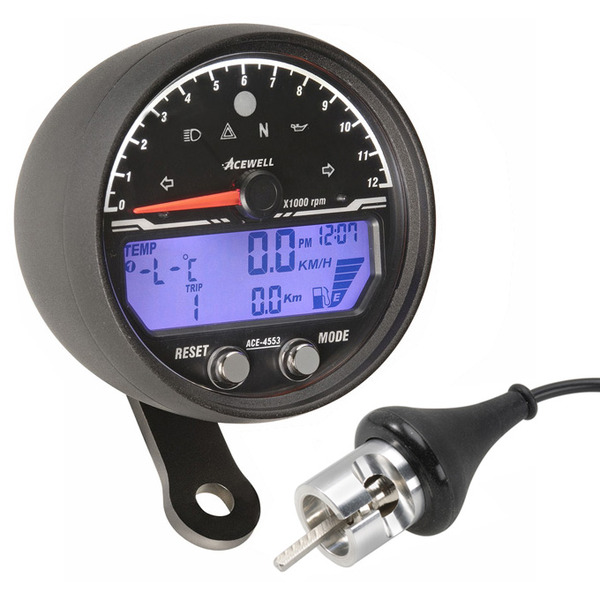

This bundle kit contains the popular Acewell 4553 digital motorcycle speedometer in the billet, black anodised alloy housing with an ACE-S11 gearbox speed sensor for BMW's R2V twin cylinder motorbikes. This Acewell combines the benefits of modern digital technology with the traditional look of an analogue tachometer needle. The tacho scale on the 4553 goes up to 12,000 RPM. The digital LCD can be configured to show up to 20,000RPM. All Acewell speedometers are waterproof and ADR approved for street legal bikes.

The ACE-S11 speedo sensor cable is suitable for the replacement speedometer cable for BMW boxer motorcycles with speedometer gear output. It Suits all R2V R2 Valve Twin Cyclinder models from 1970 - 1996.
Circumference setting is 1400mm for R100GS, 1380mm for high gear ration R100GS.

Speedo Features
- Speedo, 2.4 - 399 kmh (248.5 mph)
- Lap Timer (Manual or magnetic strip switching)
- Tachometer, up to 12,000rpm
- Temperature meter with supplied NPT1/8" temp send
- Air temperature meter with supplier temperature sender
- ADR compliant Pilot Lamps
- Max Speed, 2.4 - 399.9 km/h (248.5 mph)
- Average Speed
- Trip meter 1&2, 0-999 km
- Fuel, 7 bars. Input resistance 100, 250 or 510 ohm
- Low fuel warning light (LED)
- Odometer, 0 - 999,999km, 0 - 624,999 miles
- Clock 12/24hr
- Ride Timer 0-99 hours, Count automatically begins when vehicle is started
- Total hour meter, 0-9999 hours
- RPM warning light, preset by user
- 100% Waterproof

Temperature Gauges

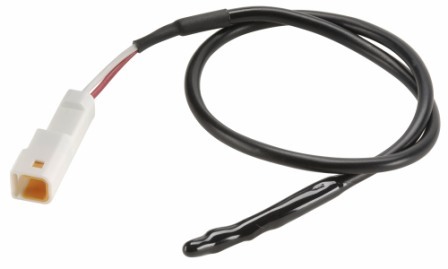

The 4xxx series features built in water temperature and air temperature gauges. Both sensors come supplied with the kit.

LAP TIMING - Manual or Automatic

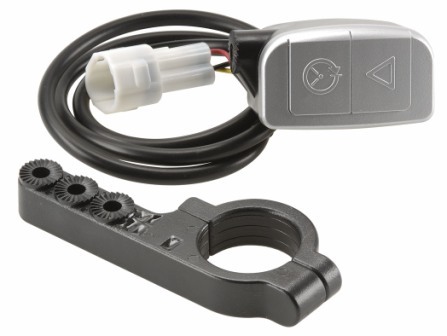

The ACE-4xxx includes a lap timing function to time up to 50 laps in a single session. The laps can be timed manually using the supplied wheel mounted switch. The most popular method is automatically via the supplied SMF-101 magnetic pick up that detects the magnetic strips used on most Go-Kart tracks. For motorcycle lap timing where strips are not in place the IT-100 infra red sender/receiver pack can be used.

Kit Includes:
- ACE-S11 Gearbox Speed Sensor
- Integrated Mounting Bracket

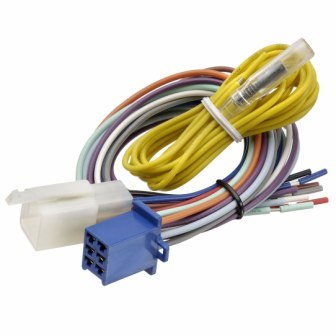

- Universal Wiring Loom
- Temperature Sensors
- Lap Timing Switch
- Wiring diagram and instruction manual

Specifications:
Power Input: 12VDC
Speed Sensor: BMW Gearbox drive
Tacho Input: CDI or Ignition-coil signal
Wheel Circumference setting: 1mm-3999mm (1mm increment)
Operation Temperature: -10C to 80C inner housing
Storage Temperature: -25C to 85C inner housing

Size:
78mm dia at the outer edge of the face

Installation:
Each speedometer features an integrated mounting arm with single bolt hole for easy installation. The RPM wire can be hard wired or simply wrapped around the spark plug cable.





(ACE-4553ABS11)

SKU ACE-4553ABS11
Brand Acewell
Shipping Weight 1.2000kg
