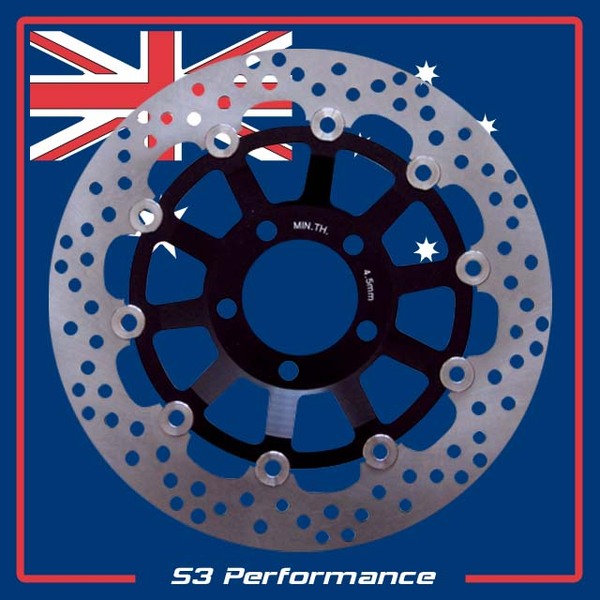

Disc Rotor Front Floating GSX750F 600F SV650 Bandit 600 ROUND

AU$149.95
Sold Out
SKU: DBFFGSF788R.S01


Calculate Shipping

Disc Rotor Front Floating GSX750F 600F SV650 Bandit 600 ROUND

These discs meet the required minimum thickness and are legal for road use. They also carry the MIN TH markings as required by ADR. S3 discs come with a 24 Month Warranty

Part: DBFFGSF788R

Compatibility
Direct replacement for the following SUZUKI models:

RGV250 J/K/L Front 88-90
GSX-R400 V Front 89
GSX400 F,J,K,L Front 88-90
GSX400 Impulse (Japan) Front 94-
GSX400 SSN Katana Front 92
RF400 R Front 93-97
GSF600 Bandit Front 96-04
GSF600 S Bandit Front 95-04
GSX600F K,L,M,N,P,R,S,T,V Front 89-97
GSX600F W,X,Y,K1,K2 Front 98-02
RF600 R-P,R,S,T,V Front 93-97
SV650 S-X,Y,K1,K2 Front 99-02
SV650 X,Y,K1,K2 Front 99-02
GSX750F K,L,M,N,P,R,S,T,V,W,X,Y,K1,K2 Front 88-02


Front Floating Rotors
This front floating disc rotor is constructed from 420 stainless steel, with a 7075 Aluminium alloy centre hub for light weight. The design of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.

Features:
- High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics.
- Suitable for left and right hand fitments

Dimensions
Rotor Diameter: 290mm
Rotor Thickness: 5.5mm
Inner Clearance: 64mm
Bolt Diameter: 10mm
Bolt Offset: 86mm
Weight: 1.53kg per rotor


Installation
Simply remove existing rotors and install the new ones. May not always be compatible with the KTM speed sensor?

1 or a pair?
The price listed is for one front brake disk rotor. If you want a pair, please buy two of these disc brakes, and we will post them together at no extra cost within Australia. If you want the discs sent by Express Post, or sent internationally, there is an extra charge per rotor.

(DBFFGSF788R.S01)

SKU DBFFGSF788R.S01
Brand Stopp
Shipping Weight 1.4300kg
Shipping Width 0.320m
Shipping Height 0.020m
Shipping Length 0.320m
Unit Of Measure ea
Assembled Length 0.320m
Assembled Height 0.020m
Assembled Width 0.320m
