320mm Oversize Disc with silver TRS083 bracket for Honda CRF250,CRF450

Kenmore 17" Microwave
Sold Out - Backorder Available

Calculate Shipping

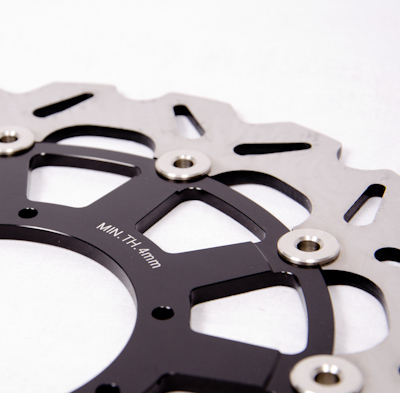

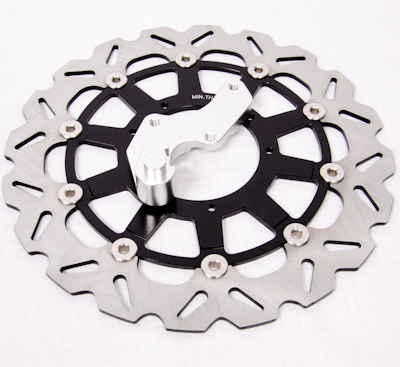

1 x Front Floating Disc Brake Rotor (DB320HON1)
1 x Mounting Bracket (TRS083)

This disc rotor is constructed from high carbon steel. The wave design ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Direct replacement for the following models:

CR125 04-08
CR250 04-08
CRF250 R 04-11
CRF450 R 04-11
CRF250 X 04-14
CRF450 X 04-14


  • High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
  • Suitable for left and right hand fitments

Rotor Diameter 320mm
Rotor Thickness 5mm
Inner Clearance 101mm
Bolt Centre 117mm
Bolt Diameter 6.4mm

This is a direct replacement for the original rotor, simply remove existing rotor and install the new one. Use the included bracket to mount the brake caliper to compensate for the larger disc dia.

Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.



Brand Stopp
Shipping Weight 1.2000kg
Unit Of Measure ea
Assembled Length 0.280m
Assembled Height 0.020m
Assembled Width 0.280m
