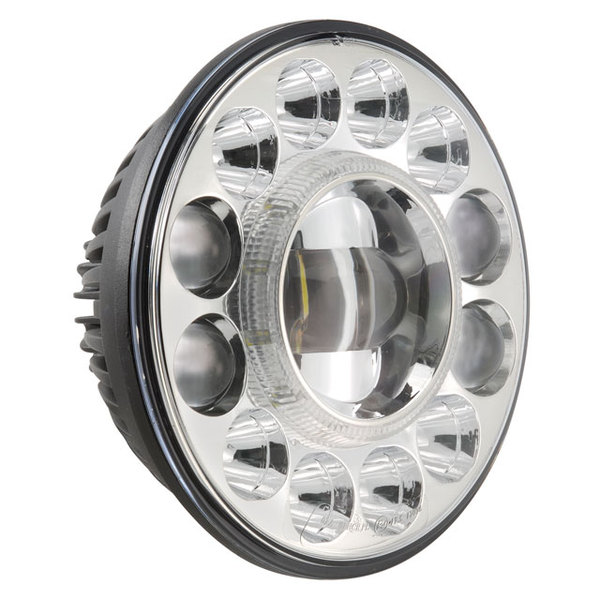

7" LED Headlamp with Hi and Lo Beam and Park Light
Notify me when back in stock
12/24V LED 7 inch Headlamp, High/Low Beam and Front Position Lamp
LEDs offer a brighter, crisper light than regular lamps. They are crystal clear and give off a white light whilst being more energy efficient saving on alternator and battery usage. Designed as a replacement headlamp for original 7" lamps in trucks and Land Rovers. This LED headlamp is designed to use the original mounting fixture.

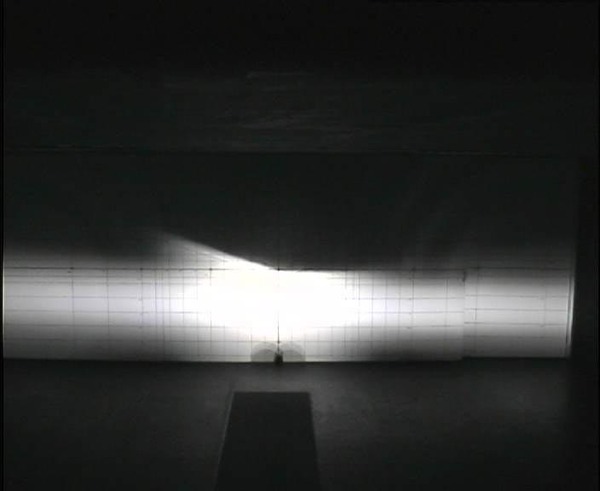

The unique LED and lens configuration creates a precise beam pattern with exact cut off and optimum road illumination. The light throw pattern is specifically deigned for right-hand-drive vehicles.
Durable die cast aluminum body , impact resistant polycarbonate lens.
High Beam 25W
Low Beam 28W
Park Light 1.5W

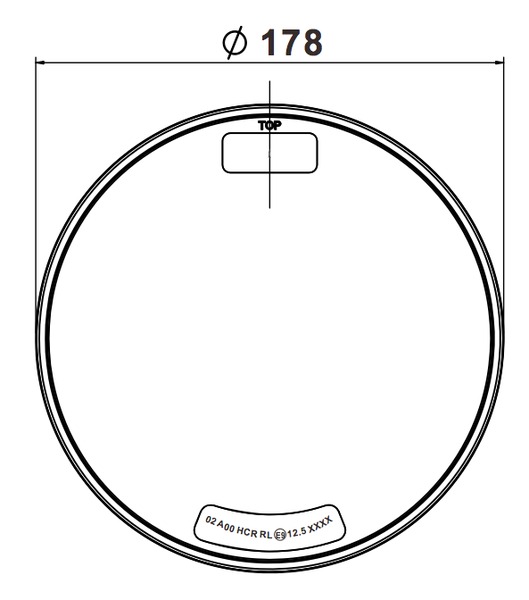

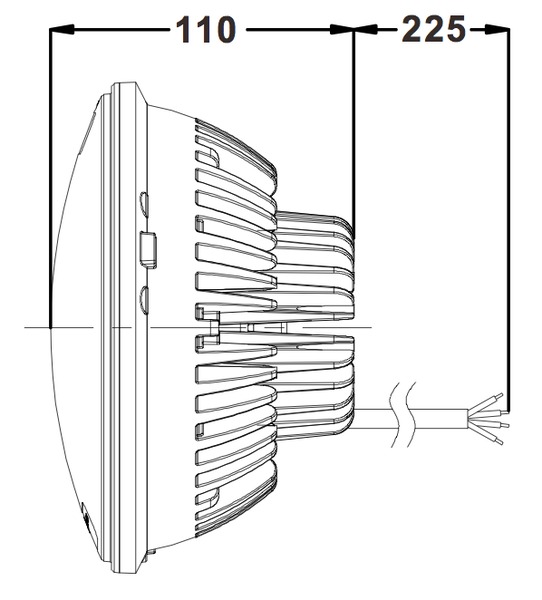

Dimensions
178mm diameter
110mm depth
Waterproof rating: IP67
LED color temperature of 6000K—6500K
Approvals:
ECE R112/R7
EMC R10
| Vehicle | Series, Defender, Range Rover |
| Model | Series I, Series II, Series III, Defender Ninety, Defender One Ten, Defender 90, Defender 110, Defender 130, Range Rover Classic |
| Application | Series I SWB, Series I LWB, Series II 88, Series IIA 88, Series II 109, Series IIA 109, Series III 88, Series III 109, Defender Ninety, Defender One Ten, Defender 90, Defender 110, Defender 130, Defender Puma 90, Defender Puma 110, Defender Puma 130, Range Rover Classic |
| Fitment | Specifically for cars driven on the LEFT side of the road |
(HLLED7)
- ECE and ADR approved for all three functions
- Suitable for halogen or sealed beam replacements
- Suits 12 or 24V vehicles
- Impact resistant Polycarbonate lens
- Ultra low current draw, won’t drain your battery
- 100% Sealed lighting system, resistant to moisture, dirt and dust
- Stainless steel mounting kit
- IP67 rated
- Cast aluminium alloy housing
- Pre-wired with 300mm of double insulated cable
- 2 Year Warranty
- High Beam: 25W
- Low Beam: 28W
- Position (Park) Lamp: 1.5W
- Multi-Voltage: 9-33V
- Working Temperature: -40 ~ 65ºC
- Weight: 1.25kg
- Wiring: Black = Earth, Blue = Low Beam, Brown = High Beam, Yellow = Park
| SKU | HLLED7 |
| Brand | ImpactLED |
| Shipping Weight | 1.8000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.008000000m3 |
| Unit Of Measure | ea |
