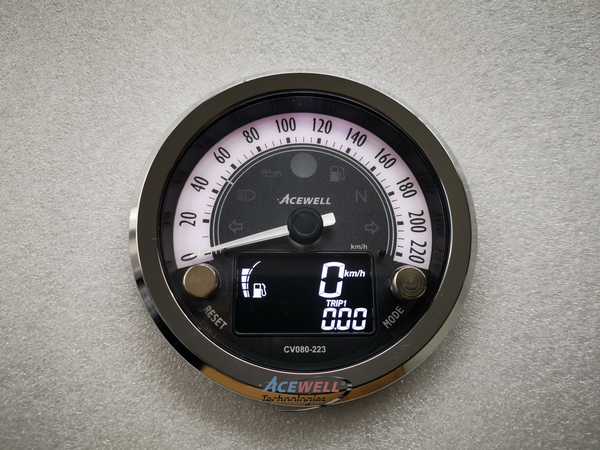

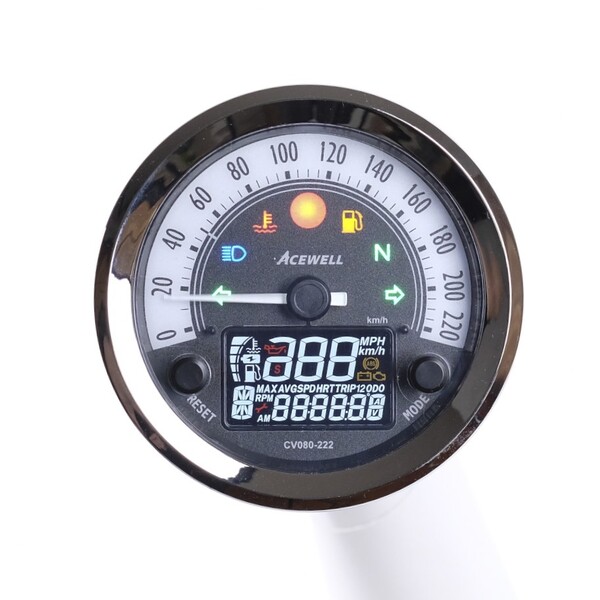

Acewell CV080 80mm needle speedometer 220kmh white face plastic chrome bezel

80mm Needle speedometer

The Acewell CV080 speedometer features a Negative VA LCD screen for high contrast in daylight. It also features a Needle speedometer or tachometer, integrated digital functions, 7 LED indicators and 6 LCD indicators.

Speedometer Needle Sweep options

We have 3 options, choose from one of 3 needle sweep ranges to suit your vehicle:

160km'h
220km/h
280km/h

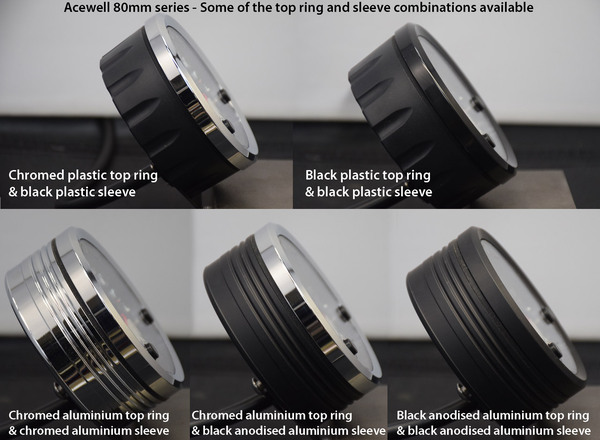

Body Material Options

Plastic chrome front bezel with black plastic body
Black anodized alloy bezel with black plastic body (Add $36)
Black anodized alloy bezel with black anodized alloy body (add $100)
Polished chrome alloy front bezel with polished chrome body (add $100)

Dimensions

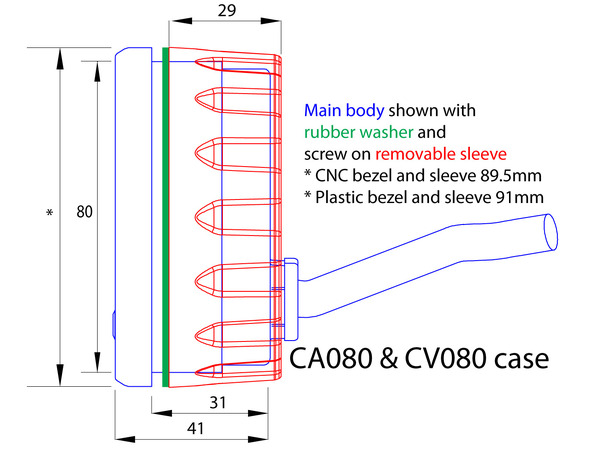

80mm diameter, 39.5mm deep

Features

• Needle speedometer, integrated digital functions, 7 LED indicators and 6 LCD indicators.
• Negative VA LCD displays digital functions of speedometer, tachometer, maximum RPM and speed, average speed, 3 trip meters, odometer, riding time, total riding time, total hour meter, volt meter, temperature meter, clock, bar-fuel gauge, and temperature gauge.
• 5 level backlight brightness can be manually adjusted.
• Gear indicator which calculates gear by comparing speed and RPM.
• Fuel gauge full and empty resistances are fully adjustable to be compatible with most fuel senders. Fuel gauge can be disabled if not required.
• Flexible battery warning voltage setting from 11.0 to 17.0V.
• Allows end user to adjust odometer when the odometer is less than 30km, great for testing and setuup.
• Odometer and total riding time are stored in memory, even when the power is off.
• Universal wheel circumference setting range from 1 to 3,999mm. Compatible with all motorcycles, plus go-karts, dune buggies, quad bikes, golf carts, race cars, and tractors
• Can mount through an 80mm hole in dashboard, or onto handlebar yoke with included stainless steel bracket
• Includes LED lights for left indicator, right indicator, engine temperature warning, RPM warning, fuel warning, and  Neutral
• Includes bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harness and temperature sensor.
• Excellent water resistant, anti-vibration structure and noise immunity design.

Magnetic bolt options

This speedometer kit includes an M6 magnetic bolt, a universal matnet, and a reed switch.  We lso have a range of diffeent sized magnetic bolts, should your front wheel use M8 or M10 bolts

Hall Sensor cable options

We have a range of Acewell Hall Sensor cables to replace your original speedometer cable. The Acewell Hall Sensor cable will convert the mechanical signal from the front hub into an electrical pulse. Plug one end into the front hub, and plug the other end into the Acewell loom.

Temperature sensor options

This kit includes a M10 x 1mm temperature sensor. If your bike uses a different sized temperature sensor, we have a range of Acewell Temperature sensors available.
