LED stop tail plate light lamp WR250 YZ250 WR450 YZ450

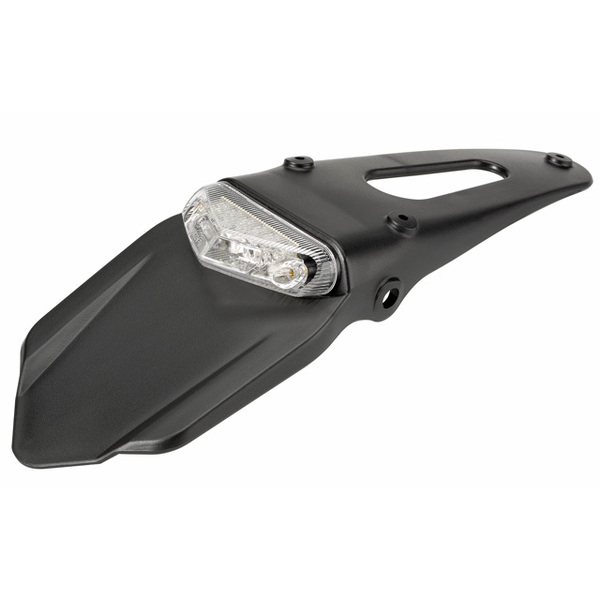

Constructed from high impact plastic with a quality matte finish and high powered LED lights. It has been successfully fitted to WR's and YZ's and will bolt straight under most dirtbike fenders. It offers a perfect solution to anyone looking to get a recreational registration for their dirt bike. With road reg in mind, the taillight fender also has moulded mount points for rear indicators, making for a neat fit and finish.

Features:
* Universal mount makes this an easy fit
* Stop, tail and licence plate lamp functions
* Pre-wired with connectors for easy installation

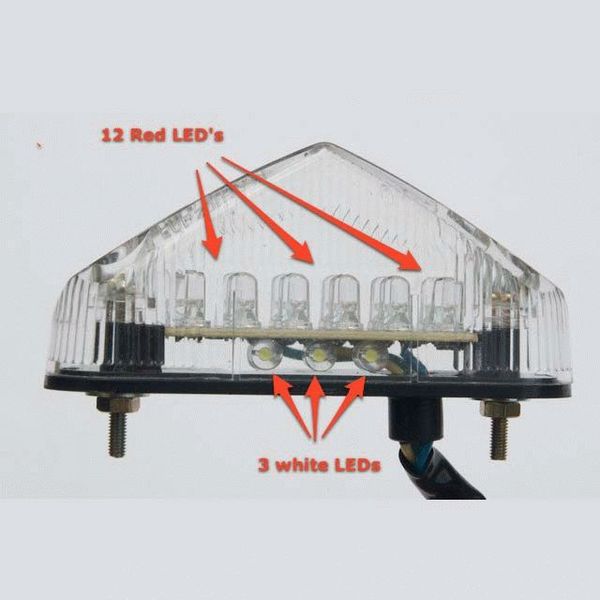

* 12 Red Superbright LED's improve the look of your bike
* 3 Superbright white LED indicators for the numberplate
* Indicator Mount points for easy installation of indicators, check out our other listings for indicators to fit
* Low current draw
* Meets Australian Design Regulations for motorbike stop/tail light

Dimensions
The LED lens is 85mm wide. The rear fender is 107mm wide at the widest point, and extends 115mm below the LED light.

Wiring
Green wire = Earth
Yellow wire = Tail light
Blue wire = Stop light

For 12 Volt system.
Tail: 0.02 Amps - 0.24 Watts
Stop: 0.05 Amps - 0.6 Watts

For 13.5 Volt system.
Tail: 0.03 Amps - 0.4 Watts
Stop: 0.08 Amps - 1.08 Watts

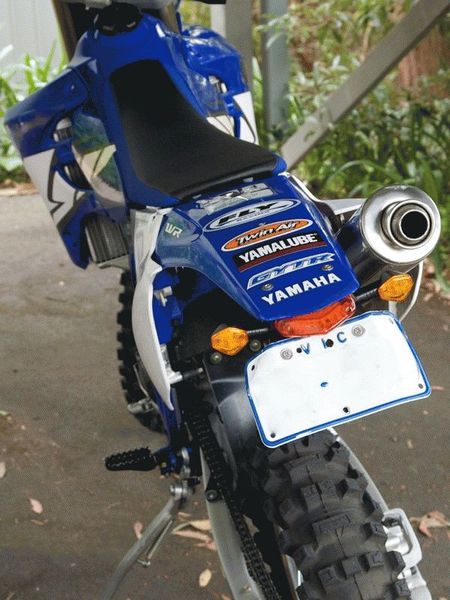

Please note: The product shown in the images above (fitted on a WR450) is the red lens version. The product now comes with a more attractive clear lens that lights up red.
