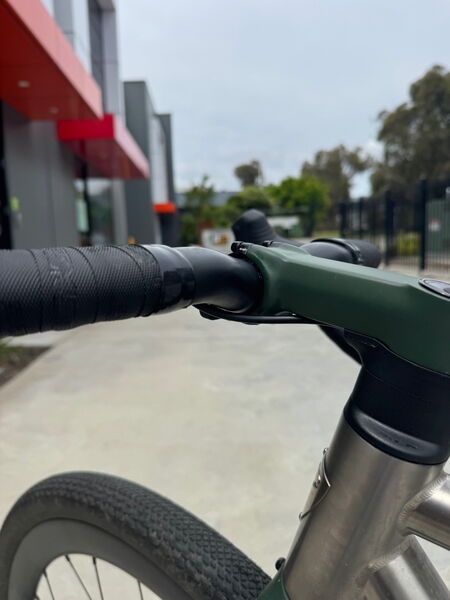

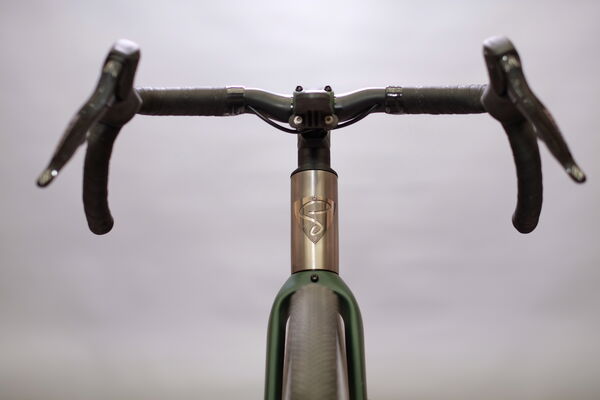

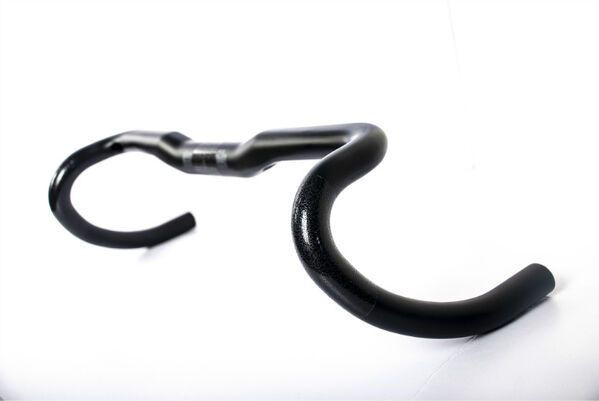

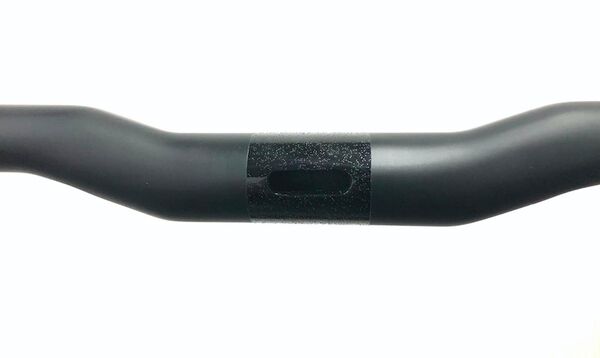

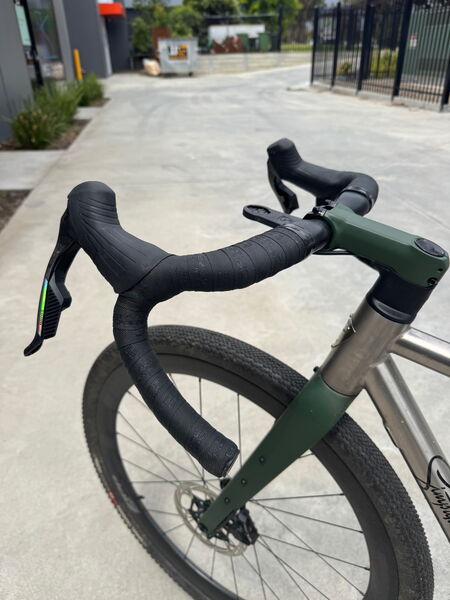

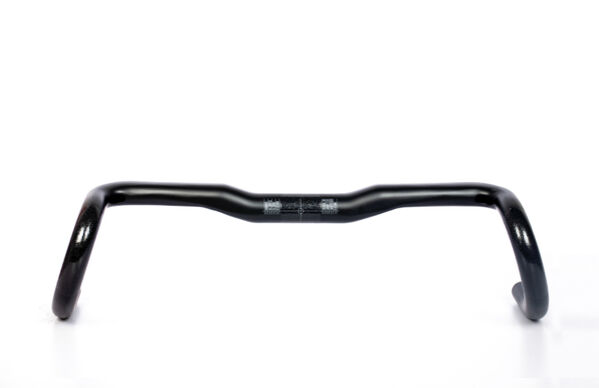

NVISAGE Handlebar Carbon Gravel flared 42cm
Notify me when back in stock
Add comfort and control to your ride
The NVISAGE carbon handlebar provides comfort and control on the road and on gravel. The 18 degrees of flare gives a wider grip when in the drops. This provides more lverage, increasing confidence while descending in the hoods both on and offroad.
The 15mm ridse in the handlebars and slightly shalllower 120mm drop makes the use of the drops easier to reach, and more comfortable to use.
Available in 4 widths: 40cm, 42cm, 44cm, and 46cm.
Specifications
18 degrees flare
42cm width at the hoods
51cm width in the drops
80mm reach
120mm drop
15mm rise from stem mount
Weight: 280g+/-10g (42cm)
Clamp Diameter: 31.8mm
Torque Spec Faceplate: 5.5Nm
Torque Spec Shifters: 6~8Nm

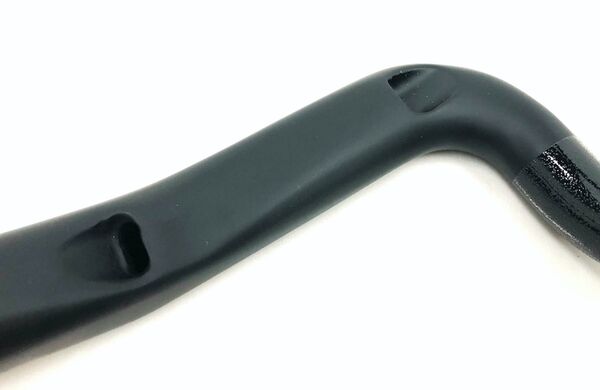

Cable Routing: Full Internal Compatible
Di2 Compatible: Yes (Di2 bar end junction)
Tested to ISO 4210
Warranty: Two years
(NVHBCG42)
| Cassette model | 10-46T or 10-50T |
| Color | Black or Silver or Blue or Gold or Green or Orange or Red or Violet |
| Made from | Chromoly steel alloy + 7075-T651 Aluminum Alloy (largest cog) |
| Made with | CNC milling |
| Cassette speeds | 11-speed |
| Weight, grams | 302 ±2% (10-46T), 316 ±2% (10-50T) |
| Cassette gears | 10-12-14-16-19-22-26-30-36-42-46 (10-46T), 10-12-14-16-19-22-26-30-36-42-48 (10-48T), 10-12-14-16-19-22-26-30-36-42-50 (10-50T) |
| Compatible rear derailleurs | Shimano 11-speed: RD-M5100-SGS (Deore), RD-M7000-11 (SLX), RD-M8000/M8050 (XT/XT Di2), RD-M9000/9050 (XTR/XTR Di2). SRAM 11-speed: NX, GX, X1, X01, XX1 |
| Freehub compatibility | SRAM XD |
| E-bike compatible | No |
| SKU | NVHBCG42 |
| Brand | Nvisage |
| Shipping Weight | 0.2800kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.120m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.009360000m3 |
