Acewell 3963 Digital Speedo & Gearbox Speed Sensor for BMW R2V Twin Motorcycles

The Acewell 3963 is a fully featured digital speedometer & tachometer with the addition of a water temperature gauge and volt meter. This bundle also includes the ACE-S11 gearbox speed sensor which is compatible with BMW boxer motorcycles using a speedometer gear output. It suits all R2V R2 Valve Twin Cyclinder models from 1970 - 1996. Circumference setting is 1400mm for R100GS, 1380mm for high gear ration R100GS.

Features:
- 100% Waterproof
- Backlit LCD screen, easy to read
- Optional tachometer scales of 10,000rpm or 20,000rpm.
- ADR compliant pilot lights
- Hour meter and Odometer readings stored in internal menory
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles

Functions:
- Bar Graphic Tachometer 500-10,000RPM, or 1,000-20,000RPM
- Digital Tachometer 100-10,000RPM or 100-20,000RPM
- RPM shift warning light
- Temperature gauge 50 - 160C
- Temperature warning light
- Battery Volt Meter 8.0 - 25.0V
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 0-9999 hours
- Total Hours 0-9999 hours
- Bar Fuel Meter 0-7 bars

Specifications:
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: BMW Gearbox Drive

Kit Includes:

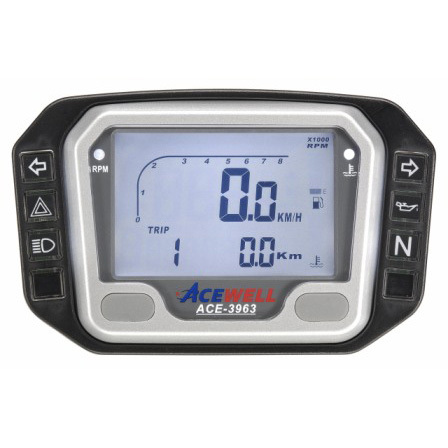

- Speedometer head unit

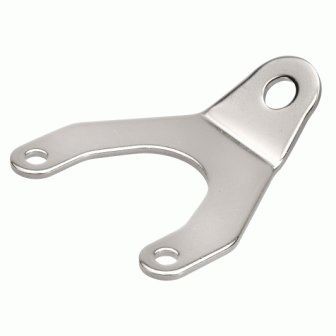

- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)

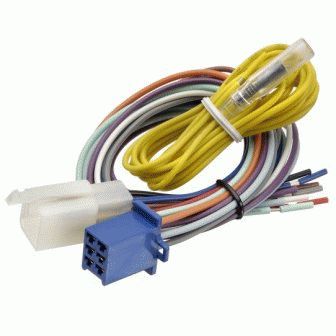

- Loom extention

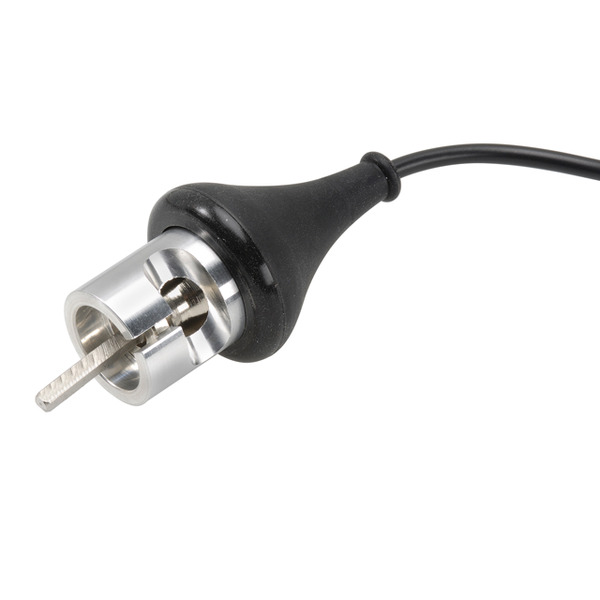

- BMW Gearbox Speed Sensor - ACE-S11
- Wiring diagram

Wiring diagram

Click here to download the ACE-3963 wiring diagram

Dimensions:
122 x 77 x 25mm

Magnetic bolt options

This speedometer kit includes an M6 magnetic bolt, a universal magnet, and a reed switch.  We lso have a range of diffeent sized magnetic bolts, should your front wheel use M8 or M10 bolts

Hall Sensor cable options

We have a range of Acewell Hall Sensor cables to replace your original speedometer cable. The Acewell Hall Sensor cable will convert the mechanical signal from the front hub into an electrical pulse. Plug one end into the front hub, and plug the other end into the Acewell loom.

Temperature sensor options

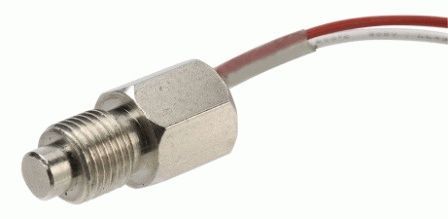

This kit includes a M10 x 1mm temperature sensor. If your bike uses a different sized temperature sensor, we have a range of Acewell Temperature sensors available.
