Acewell ACE-3853 Motorbike digital speedo with LCD

Kenmore 17" Microwave
AU$260.00
In Stock
SKU: ACE-3853
In Stock


Calculate Shipping

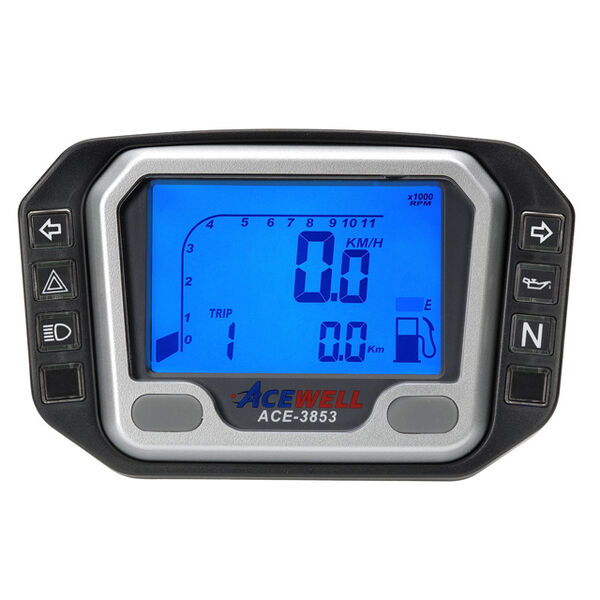

Acewell 3853 Digital Speedo & Tacho with Pilot Lights & Fuel Gauge


Ideal for all kinds of road and off road vehicles. ECE and ADR approved.
Used as OEM equipment on Japanese and European enduro bikes.

Features:
- 100% Waterproof
- Backlit LCD screen, easy to read
- Optional tachometer scales of 10,000rpm or 20,000rpm.
- ADR compliant pilot lights
- Fuel gauge
- Hour meter and Odometer readings stored in internal menory

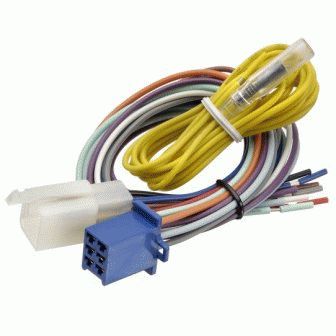

- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles

Functions:
- Bar Graphic Tachometer 500-10,000RPM, or 1,000-20,000RPM
- Digital Tachometer 100-10,000RPM or 100-20,000RPM
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 0-9999 hours
- Total Hours 0-9999 hours
- Bar Fuel Meter 0-7 bars

Specifications:
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: Reed sensor with magnetic bolts

Kit Includes:
- Speedometer head unit

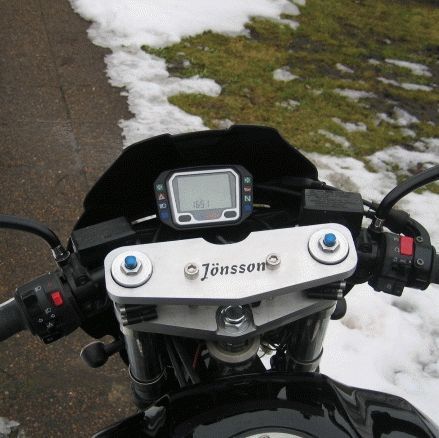

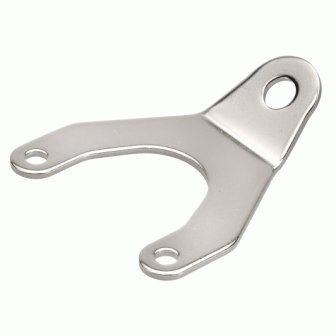

- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)
- Loom extention

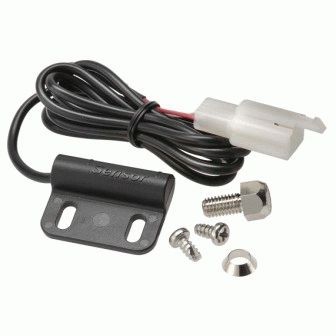

- Speed senor kit with two magnetic bolts
- Wiring diagram

Wiring diagram

Click here to download the ACE-3853 wiring diagram


Dimensions:
122 x 77 x 25mm

Easy Installation
The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. For bikes, simply replace a bolt in your front disc rotor with the included magnetic bolt, and align the reed switch with the magnet. Then program the tyre circumference into the Acewell. That will calculate speed, trip, and odometer readings. For cars, simply ensure the magnet passes the sensor for every turn of the tyre. This can be done using the wheels, drive shaft or other rotating parts

(ACE-3853)

SKU ACE-3853
Barcode # 4711946066536
Brand Acewell
Shipping Weight 0.5200kg
Shipping Width 0.120m
Shipping Height 0.090m
Shipping Length 0.180m
Unit Of Measure ea
Assembled Length 0.180m
Assembled Height 0.090m
Assembled Width 0.120m
