Digital Speedometer Tacho for Yamaha WR250 & WR450 with Direct Fit Speedo Cable

Digital Speedo Speedometer Tacho for Yamaha WR250 & WR450 With Direct Fit Speedo Cable

The ACE-3701 is a highly versatile and functional unit that will provide much more modern speedo/tacho solution when compared to the original Yamaha unit. This kit comes with everything you need to install the unit including mounting bracket, wiring loom adapter, RPM sensor wire and the all important speedo drive cable to plug straight into your bikes existing drive.

From there it's a simple bit of maths to work out the ratio that the drive turns at in relation to the front wheel. You take the outer diameter of the front tyre and divide that value by the amount of turns the speedo drive makes in one wheel revolution. Then simply punch that value into the speedo during the set-up and it does the rest! This extra component really finishes off the install. A user manual and wirng diagram are also included.

Features:
- 100% Waterproof
- Backlit LCD screen, easy to read
- Optional tachometer scales of 10,000rpm or 20,000rpm.
- ADR compliant pilot lights
- Hour meter and Odometer readings stored in internal menory
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles
- Plug and play speedo cable

Functions:
- Bar Graphic Tachometer 500-10,000RPM, or 1,000-20,000RPM
- Digital Tachometer 100-10,000RPM or 100-20,000RPM
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 0-9999 hours
- Total Hours 0-9999 hours

Full Feature List:

* 300KM/H multi-functional LCD ATV/MOTORCYCLE computer includes analogue and digital tachometer, speedometer, trip meter, odometer, clock, average speed measurement, maximum speed measurement, riding timer and total riding timer.
* Computer housing includes 8 LED lights for different purposes.
* LCD has 2 row digital and an analogue bar-graph tachometer display with blue LED backlights.
* Odometer and total riding timer are stored in memory, even when the power is off, or the battery is disconnected. Note the odometer reading cannot be transferred from your previosus speedometer, it will start at 0. For a model with transferrable odometer reading, consider the Acewell 6554 or Acewell CV080 series
* The computer always displays the time even when the bike is powered off.

Specifications
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: ACE-S4 digital speedo cable

Kit Includes:

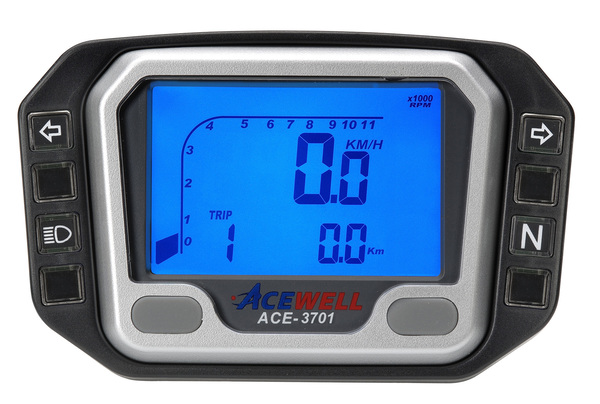

- Speedometer head unit

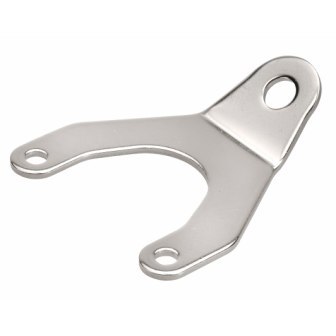

- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)

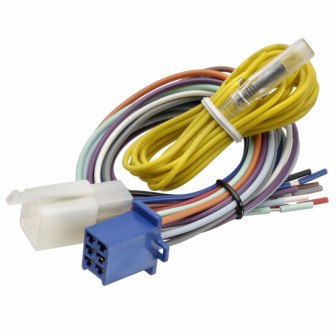

- Loom extention

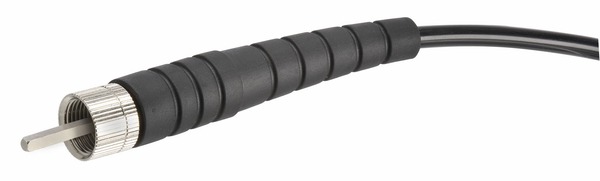

- ACE-S4 digital speedo cable
- Wiring diagram

Dimensions: 122 x 77 x 25mm
