SpecificationsDriving Light & Light Bar Wiring Harness by Impact LED

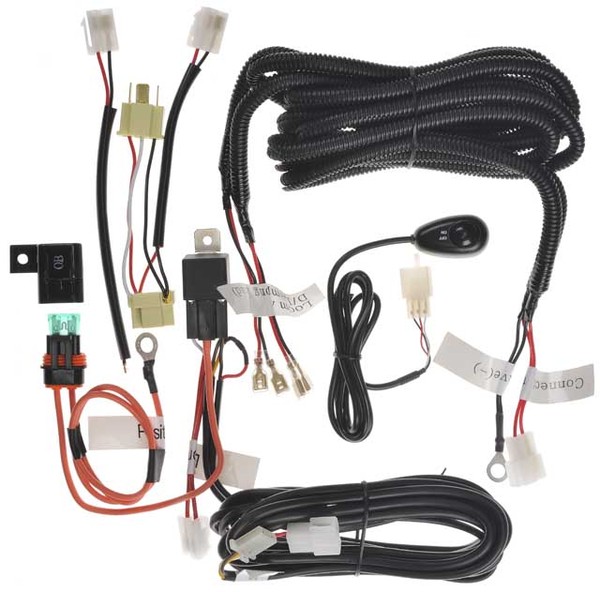

Take the headache out of fitting auxilary driving lights or light bars to your vehicle. With our Impact LED universal wiring harness you have everything you need pre-wired and ready to go. Designed to be a simple and safe solution for wiring in any driving lights or light bar on your passenger vehicle or 4x4. Each part of the wiring harness is labelled for easy identification and installation.

• Plug and Play for H4 Headlamps
• Suitable for twin or single light sets
• High quality cable and connectors
• Pre-wired, ready to install
• Easy to understand design
• Off/On switch included
• Relay & inline fuse holder with fuse installed
• Suitable for passenger vehicles and 4x4s
• Option of universal or H4 connectors for high beam active

Gone are the days of splicing or cutting into your vehicles headlight loom!

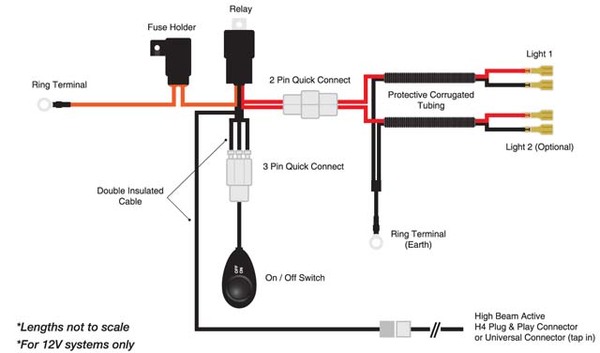

Loom Specifications

2.0m primary light loom with protective corrugated tubing, colour coded red and black wires, and terminated with female flat blade terminals. Also includes a black earth cable with a ring terminal for easy connection to the battery.
1.5m secondary light loom with protective corrugated tubing, colour coded red and black wires, and terminated with female flat blade terminals
6 x male flat blade terminals to allow for easy connection and disconnection of the primary and secondary lights.
4.0m switch cable, including 3.0m of double insulated cable for reliable engine bay installation, then a 2 pin quick connect to a 1.0m cable pre-installed with an adhesive on-off switch for easy mounting on the dashboard.
0.6m Orange Fuse holder wire, with easy mount inline fuse holder. Fuse pre-installed. Fuse wire is terminated with a ring terminal for easy connection to the battery.
1.0m High beam connection cable with a 2 pin quick connect. Can be connected to the H4 cable or the tap-in cable
0.2m H4 cable has a 2 pin quick connect and a H4 connector to plug into the factory wiring where a H4 globe is used
0.2m Tap-in cable has a 2 pin connector to connect to high Beam cable. The other end has bare wires to tap into the factory loom where the car does not use a H4 globe
