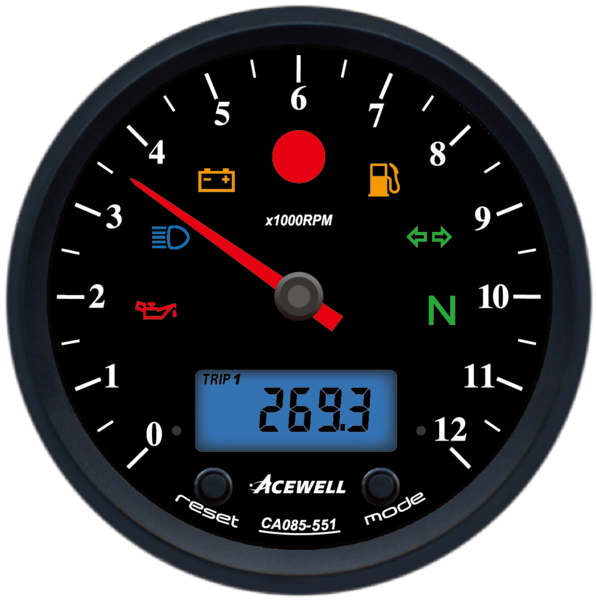

95mm tachometer, 12000rpm black face, digital speedometer, black plastic bezel

AU$249.00
In Stock
SKU: ACE-CA085-551-B-B

Body Material
Tachometer Range


Calculate Shipping

Black plastic rimmed 95mm Needle Tachometer and Digital Multifunction Gauge to replace your original gauge

Features

Tachometer with 12,000rpm needle sweep (9,000rpm sweep available - see separate listing)

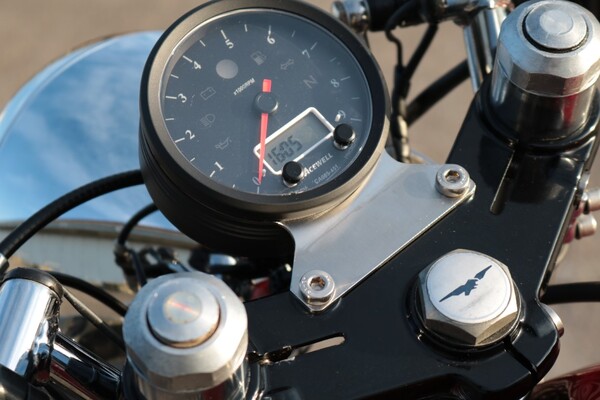

Can mount through an 85mm dashboard hole, or mount to the handlebar using the included  stainless steel bracket

Digital LCD displays speed, bar fuel, or bar temperature, gear indicator, and one other function simultaneously

Digital LCD can also display digital tachometer up to 19990rpm, or digital Speedometer up to 399km/h

Gear indicator calculates the gear by comparing speed and RPM. Can be switched off if not required

10 level backlight brightness for viewing in all light conditions

Fuel gauge with fully adjustable resistance settings to be compatible with most fuel senders. Can be disabled if not required

Flexible battery warning voltage setting from 11.0V to 17.0V

The odometer can be adjusted when the measurement is less than 30km for test and setup purposes

Univeral wheel circumference setting from 1mm to 3999mm caters to Motorcycles, Cars, ATVs, Trucks, and Tractors.

Includes main unit, mount ring, mount bracket, RPM sensing wire, hall or reed sensor, fitting kit, wiring harness tails, wiring diagram, instructions, and engine temperature sensor

Body Material Options:

Black Plastic Body and bezel

Other options available in separate listings:
Chrome plastic body with plastic chrome plastic bezel
Anodized black alloy body and bezel ($100 more)
Chrome polished alloy body and bezel ($100 more)

Dimensions

Bezel (top ring) 100mm outer diameter (plastic option) / 95mm outer diameter (Alloy option)
Sleeve 95mm outer diameter
Total depth 47mm
The visible depth if panel-mounted 10mm
Hole 85mm diameter for panel mounting

(ACE-CA085-551-B-B)

SKU ACE-CA085-551-B-B
Brand Acewell
Shipping Weight 0.8000kg
Shipping Width 0.160m
Shipping Height 0.140m
Shipping Length 0.180m
Shipping Cubic 0.004032000m3

1 year
