Acewell 20000rpm Tachometer Speedometer for Sports Track Bike

20000rpm Analogue Tachometer

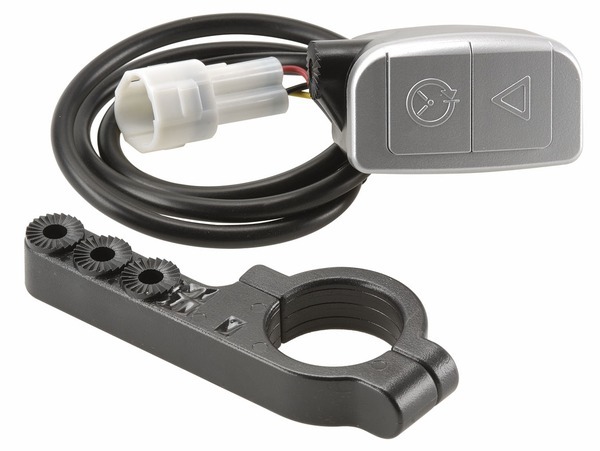

The Acewell ACE-6754 Digital Speedo is a fully optioned, modern unit with many of the features demanded by today's high performance motorcycles. The key features of the ACE-6754 are the large analogue tachometer, and the backlit LCD screen, providing clear, easy to read data including speed, engine water temp, fuel level and gear indicator. The screen also shows 1 of up to 19 different data points, from a trip meter (2 trip counters available), to odometer, to battery voltage and many more. This, combined with the programable shift light make nailing those high RPM gear changes a piece of cake. The Acewell ACE-6754 also includes a lap timing feature which is controlled by the bar mountable thumb switch.

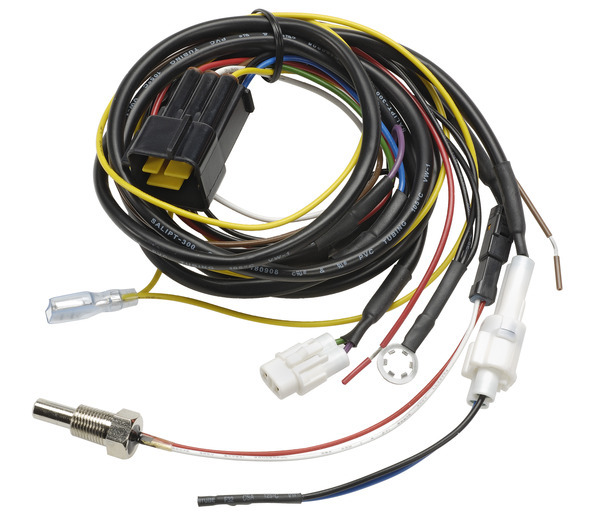

Wiring diagram

Click here to download the ACE-6754 wiring diagram

ADR compliance

The odometer reading is retained in the Acewell memory, even if the battery is disconnected or goes flat.

The speedometer can be calibrated by adjusting wheel diameter in 1mm increments, ensuring speed accuracy and compliance for road registration and ADR.

Magnetic bolt options

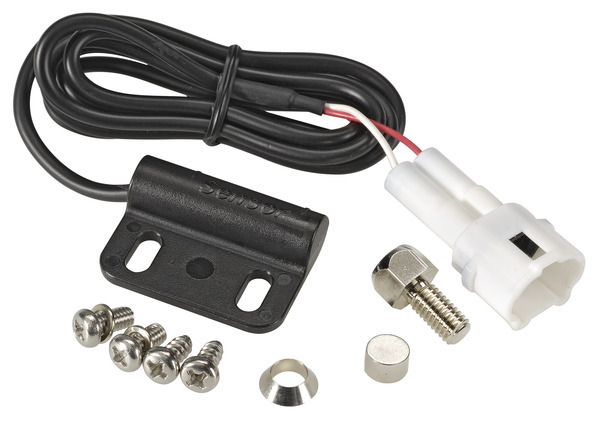

This speedometer kit includes an M6 magnetic bolt, a universal matnet, and a reed switch.  We lso have a range of diffeent sized magnetic bolts, should your front wheel use M8 or M10 bolts

Hall Sensor cable options

We have a range of Acewell Hall Sensor cables to replace your original speedometer cable. The Acewell Hall Sensor cable will convert the mechanical signal from the front hub into an electrical pulse. Plug one end into the front hub, and plug the other end into the Acewell loom.

Temperature sensor options

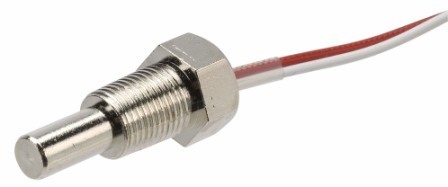

This kit includes a M10 x 1mm temperature sensor. If your bike uses a different sized temperature sensor, we have a range of Acewell Temperature sensors available.
