Acewell 2853 Golf Buggy Buggie Cart Kart Digital Speedometer

Kenmore 17" Microwave

Easy to install

AU$203.00
In Stock
SKU: ACE-2853.E02
In Stock


Calculate Shipping



Ideal replacement or upgrade to original instrument cluster

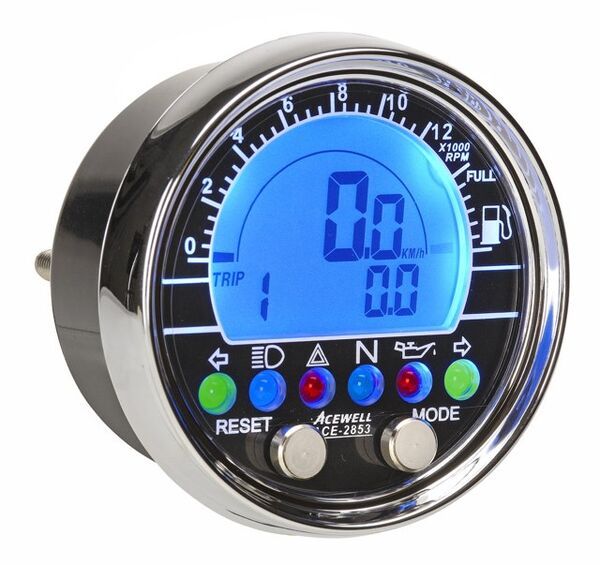

The ACE-2853 digital speedometer from S3 Performance is ADR approved and road legal for registered vehicles in Australia and New Zealand.  The ability to flush mount the 2853 makes it very popular for dash mount on golf buggies.

Features:
- 100% Waterproof
- Backlit LCD screen, easy to read
- Digital tachometer up to 19,900rpm
- Built-in RPM shift warning
- Fuel gauge
- Hour meter and Odometer readings stored in internal menory

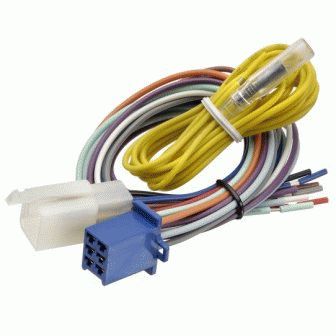

- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles

Functions:
- Digital Tachometer 100-19,900rpm
- Bar graphic Tachometer 500-12,000rpm
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 1 & 2 0-99hrs
- Total Hours 0-9999hours
- Bar Fuel Meter 0-7 bars

Specifications
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: Reed sensor with magnetic bolts

Kit Includes:
- Speedometer head unit

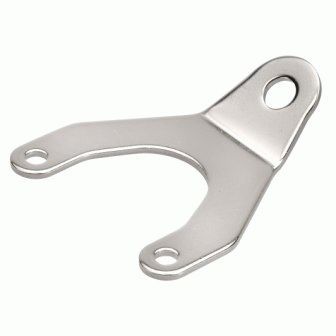

- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)
- Loom extention
- Speed senor kit with two magnetic bolts
- Wiring diagram

Wiring diagram

Click here to download the ACE-2853 wiring diagram


Dimensions: 72mm dia x 43mm deep

Easy Installation
The speedo can be flush mounted or installed using the supplied mounting bracket.

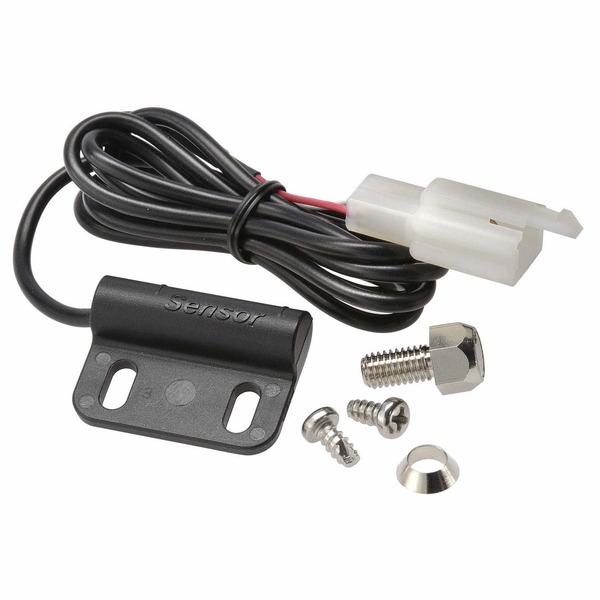

The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. For carts or buggies, simply ensure the magnet passes the sensor for every turn of the tyre. This can be done using the wheels, drive shaft or other rotating parts
, then program the tyre circumference into the Acewell for an accurate reading.

Australian motorcycle registration compliance

The ACE- 2853 includes all warning lights required for Australian road regristration of a motorcycle, including High Beam,Hazard,  Neutral, and Left/Right turn signals. There are other Acewell models with warning lights optimised for overseas markets such as the ACE-2856. We receommend that for Audstralia you purchase the AC-2853 instead.

(ACE-2853.E02)

SKU ACE-2853.E02
Brand Acewell
Shipping Weight 0.4100kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.130m
Unit Of Measure ea
Assembled Length 0.130m
Assembled Height 0.120m
Assembled Width 0.120m
