Acewell Digital Speedo for Custom Motorcycles Choppers Cafe Racer ADR Approved

Road Worthy Compliant

In Stock
SKU: ACE-2853-E03

Calculate Shipping


Ideal replaceement or upgrade to original instrument cluster

The ACE-2853 digital speedometer from S3 Performance is ADR approved and road legal for passenger vehicles and motorcycles in Australia and New Zealand.  The ability to flush mount the 2853 makes it very popular for custom bike builders.

- 100% Waterproof
- Backlit LCD screen, easy to read
- Digital tachometer up to 19,900rpm
- Built-in RPM shift warning
- Fuel gauge
- Hour meter and Odometer readings stored in internal menory
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles

- Digital Tachometer 100-19,900rpm
- Bar graphic Tachometer 500-12,000rpm
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 1 & 2 0-99hrs
- Total Hours 0-9999hours
- Bar Fuel Meter 0-7 bars

- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: Reed sensor with magnetic bolts

Kit Includes:
- Speedometer head unit

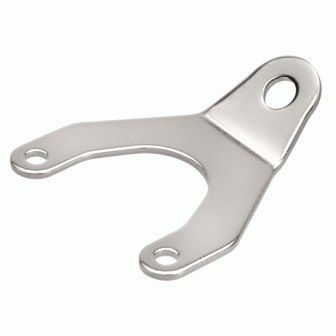

- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)

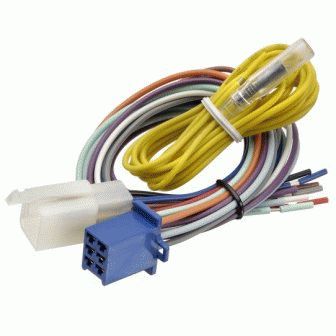

- Loom extention

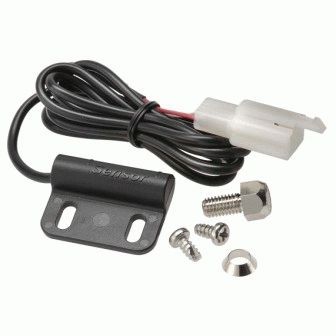

- Speed senor kit with two magnetic bolts
- Wiring diagram


Wiring diagram

Click here to download the ACE-2853 wiring diagram


Dimensions: 72mm dia x 43mm deep

Easy Installation

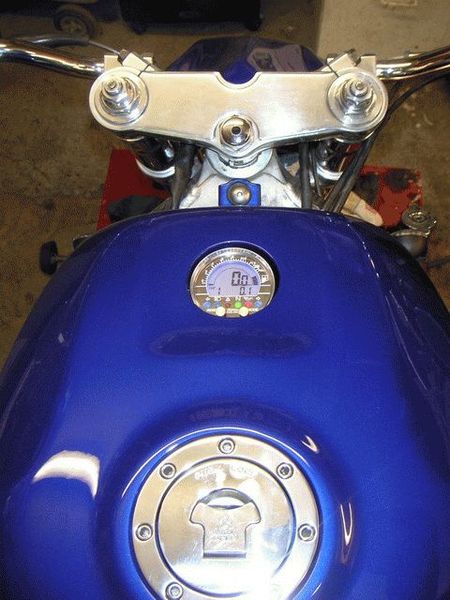

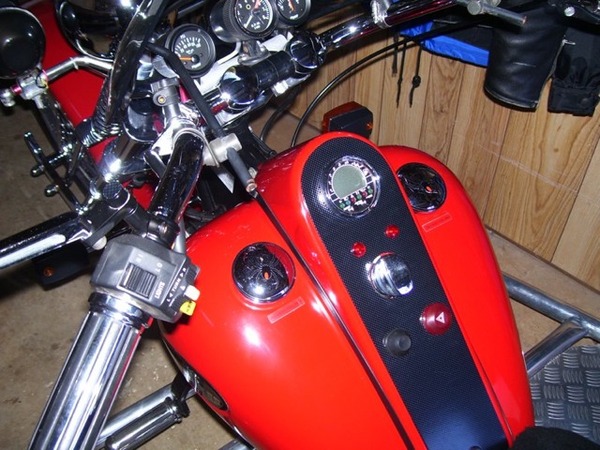

The speedo can be flush mounted or installed using the supplied mounting bracket.

The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. For bikes, simple replace a bolt in your front disc rotor with the included magnetic bolt, and align the reed switch with the magnet. Then program the tyre circumference into the Acewell. That will calculate speed, trip, and odometer readings. For cars, simply ensure the magnet passes the sensor for every turn of the tyre. This can be done using the wheels, drive shaft or other rotating parts


SKU ACE-2853-E03
Brand Acewell
Shipping Weight 0.4100kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.130m
Unit Of Measure ea
Assembled Length 0.130m
Assembled Height 0.120m
Assembled Width 0.120m
