Acewell dual channel polarity inverter for up to 2 pilot lamps

The Acewell IVR-02 LED-INVERTER converts the input control signal (IN) into the opposite signal (OUT). E.g. incoming control signal (IN) is - output signal (OUT) becomes + control signal. This is necessary to convert the pre-assigned input control signals for the control lights.

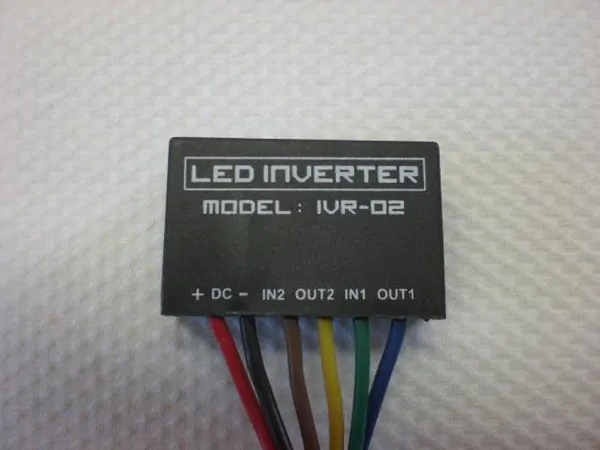

The LED inverter ACE-IVR 02 has 2 input and 2 output signal connections.

Connection:

Red cable - switched plus

Black cable - vehicle ground

Green cable (IN) - vehicle control signal

Blue cable (OUT) - control signal LED indicator light

brown cable (IN2) - control signal 2 vehicle

yellow cable (OUT2) - control signal 2 LED indicator light
