Acewell NTC Input converter

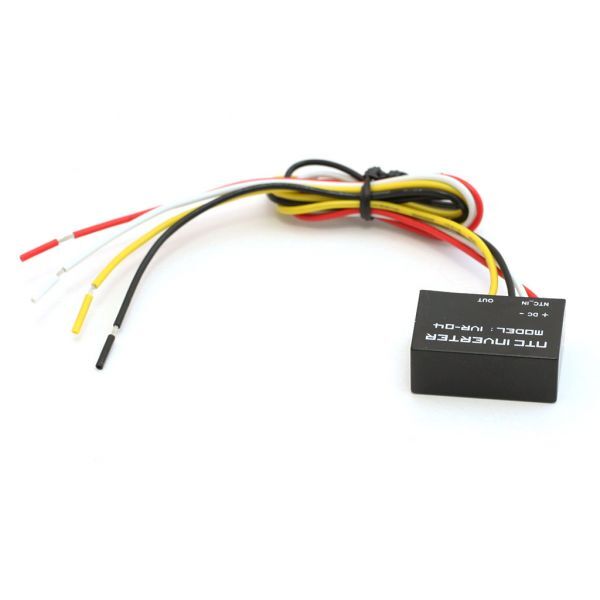

The Acewell IVR-04 is an LED converter with single output. This adaptor replaces the bulb in either a motorcycle low fuel level adaptor or the battery light on a BMW Boxer to allow an LED to be used to show the low fuel or battery warning instead.

The adaptor can also be connected to an Acewell fuel gauge in RES mode to display low fuel on the LCD.

IVR-04 has 1 output which pulls -ve when the bulb would normally be illuminated. To connect to a RES mode fuel gauge you connect -ve If using one of the LEDs then check if it needs to pull +ve or -ve on the wiring diagram for the LED.

Red cable Ignition live (Switched +ve) Black cable -ve vehicle ground White cable Wire from NTC reserve sensor or alternator (BMW warning lamp) Blue cable When reserve / battery light is on, positive (+) output 1 (IVR03 only) Yellow cable When reserve / battery light is on, minus (-) output 2.

Not what youre looking for?
Check out the other Acewell inverter, the IVR-03
