Acewell single channel polarity inverter

Inverts positive to negative for the LED pilot lamps

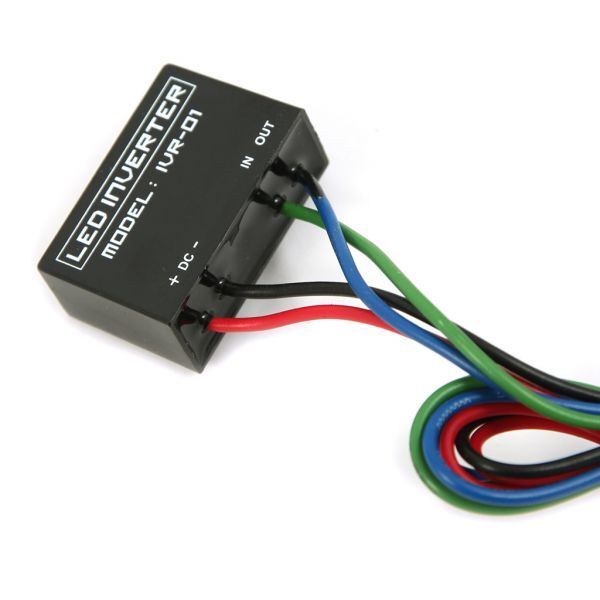

The Acewell IVR-01 inverts a signal for operating LED tail lights on -ve switched brake light switches. Allows connection of a +ve switched input to a -ve switch and -ve switched input to a +ve switch.

It converts the input control signal (IN) into the opposite signal (OUT). For example, incoming control signal (IN) is -ve output signal (OUT) becomes +ve control signal. This is necessary to convert the pre-assigned input control signals for the indicator lights.

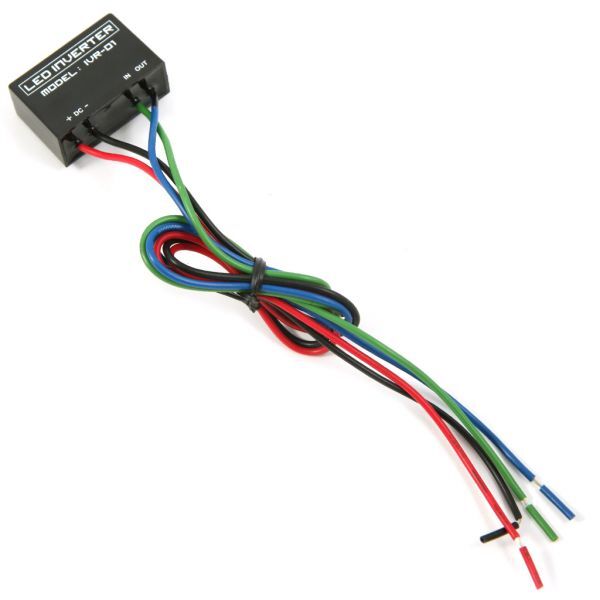

Connection:

Red cable - switched plus

Black cable - vehicle ground

Green cable (IN) - vehicle control signal

Blue cable (OUT) - control signal LED indicator lamp
