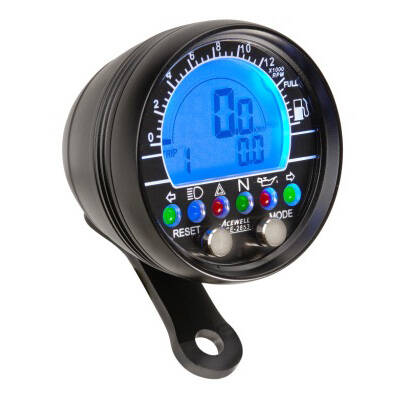

Round digital speedo with fully optioned LED panel and fuel meter in black metal housing

Ideal replacement or upgrade to original instrument cluster





Awesome features and functions in a compact, attractive unit. Finished in a great looking black anodized aluminium housing.









This  Speedo is a perfect replacement for motorcycle brand speedo's that could cost you a small fortune!! The unit is designed to be fully universal. It can can be fitted to virtually any bike, quad, kit car or racing lawn mower!! It provides a legal speedo, odometer and trip meter readout (km/h or MPH) together with a clock feature.

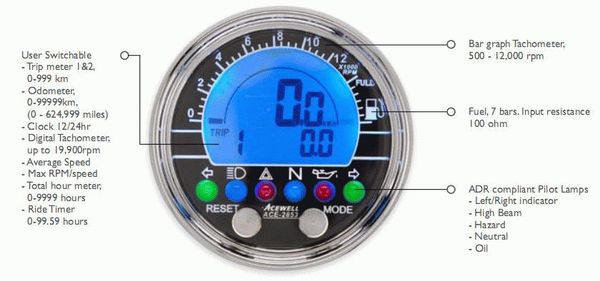

LED indications give you left indicator, right indicator, full beam and neutral.

The panel display gives you the tacho scale at the top, 1st row display offers you the speedometer, and various mode functions are in the 2nd row display.

It also has a reset button and mode button for easy navigation.



It also features a fuel gauge. The fuel sender must be 100ohm. If you do not have a fuel sender, you can purchase an Acewell ACE-TS, or you can choose not to connect the fuel sender.

Features:
Includes analog and digital tacho, speedo (300km/h max), trip meter, odometer, clock, average speedo, maximum speedo, riding timer and cumulative riding timer.
LCD has two rows of digital and one analog bar-graphic tacho displays with blue LED backlight.
Odometer and cumulative riding timer measurements are stored in memory even when the power is off.
Adjustable wheel circumference suitable for all kinds of wheels: setting range of 1-3999 mm setting.
MPH and KPH switchable.
Waterproof Design.

Specifications:
Power Input: 12VDC
Dimensions: 64mm round x 40mm deep
Speed Sensor: No Contact Magnetic Sensor and reed switch
Tacho Input: CDI or Ignition-coil signal
Wheel Circumference setting: 1mm-3999mm (1mm increment)
Operation Temperature: -10C to +80C inner housing
Storage Temperature: -25C to +85C inner housing









Easy Installation

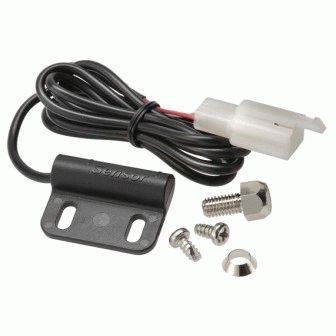

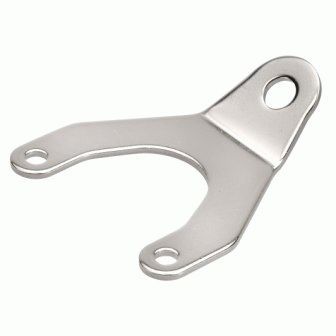

The kit includes a stainless steel mounting bracket, full wiring loom with connectors to match the Acewell computer, reed switch and magnet for speed pickup, wiring diagram, and english instructions.


Wiring diagram

Click here to download the ACE-2853 wiring diagram

Other Models Available
We also have stock of the ACE-2853, ACE-2853CP, ACE-3100, ACE-3701, ACE-3753, ACE-3853, and ACE-3963. If there is a model you are after that we do not have in stock, we can get it for you. We can also supply you with Acewell accessories, such as magnetic bolts for use in the front brake rotor for a factory look install, hall sensors, water temperature adaptors, and water temp sensors for race bikes.



Australian motorcycle registration compliance

The ACE- 2853 includes all warning lights required for Australian road regristration of a motorcycle, including High Beam,Hazard,  Neutral, and Left/Right turn signals. There are other Acewell models with warning lights optimised for overseas markets such as the ACE-2856. We receommend that for Audstralia you purchase the AC-2853 instead.
